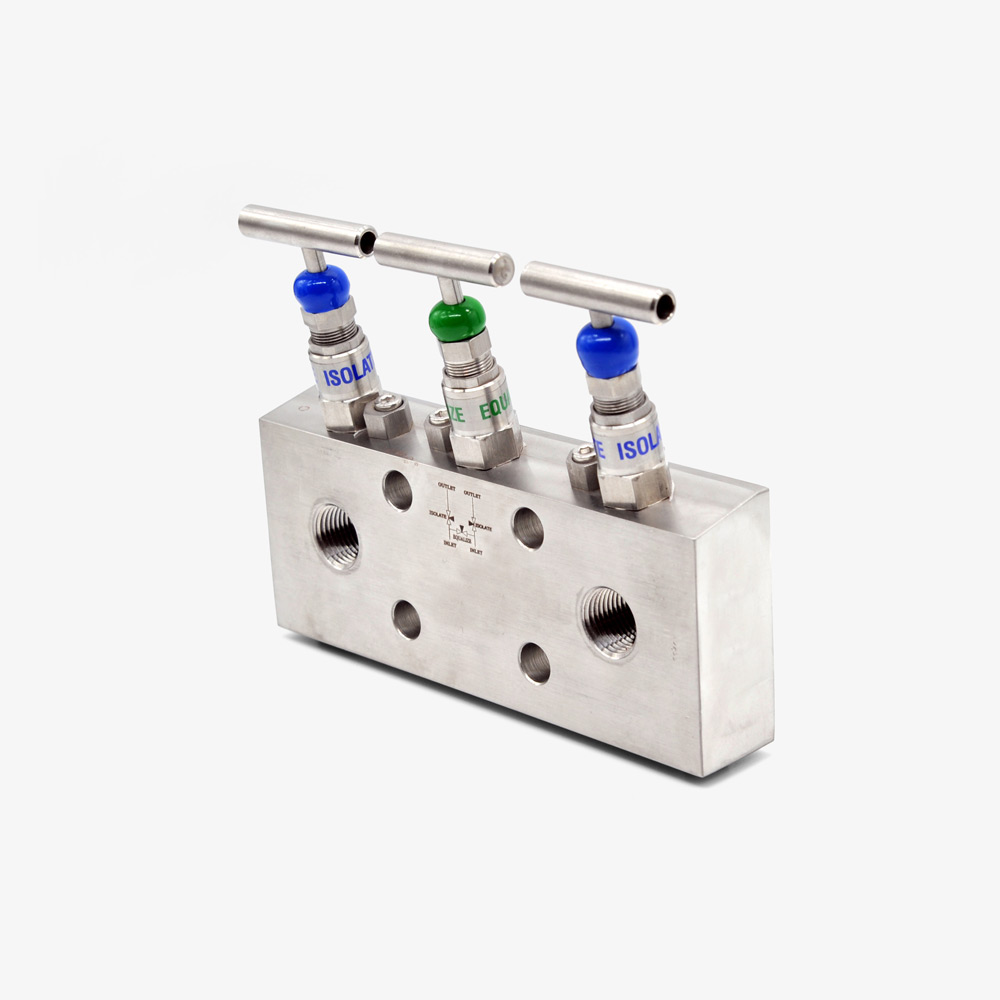

The 3R series is a remote mount manifold suitable for pressure transmitters and static instrument isolation. The 3R series has two process isolations and one equalisation. A low operating torque is achieved using a super finished (made in-house) stem and bonnet packed with low friction PTFE and graphite seals that provide a leak tight seal.
FEATURES
Connection Size ½” NPT
Pressure Class 6000 PSI
Temperature ‐46°C to 200°C (‐51°F to 392°F)
Bore Size 5mm
