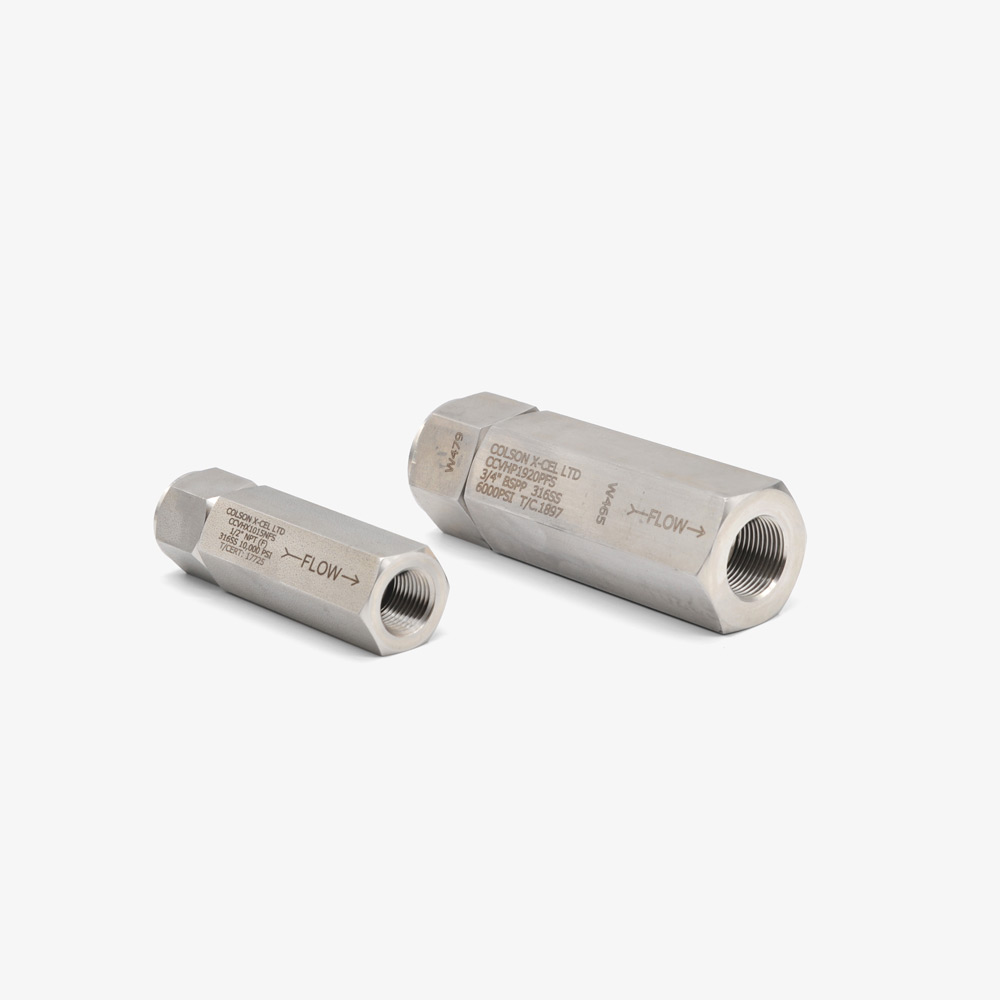

The CCV high pressure check valve is a Stainless Steel, two piece, screwed connection, bar stock valve, comprising of an Isolating Stainless Steel poppet seal. Available in sizes from ¼” to 1” with a screwed NPT thread* utilising PTFE & Viton seals and a Stainless Steel spring providing a 4psi cracking pressure as standard.
FEATURES
Connection size ¼” – 1”
Pressure Rating 10,000psi (As Std) (6000psi 3/4” & 1”)
Temperature range -29°C to 100°C (-20.2°F to 212°F)
Bore Sizes 10mm, 13mm & 19mm
Because standard products don’t always fit the application.
At Colson Valves, we design and manufacture bespoke valve solutions in-house, which means we can move quickly on late specification changes, tight timelines and complex operating conditions – without compromising quality or compliance.
