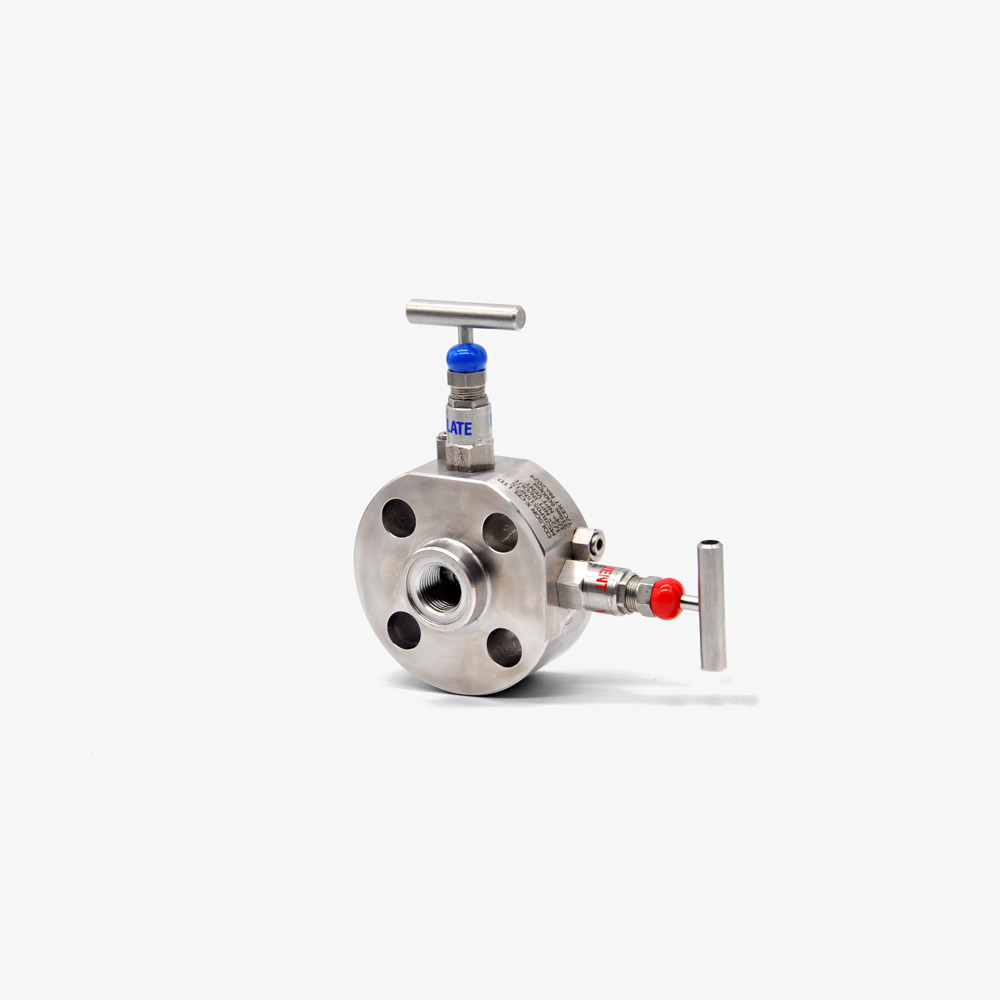

The DMF Series monoflange valves are designed for compact, high-integrity installations where space and performance are critical. Featuring a flange x screwed configuration, the range is available in block, block and bleed, and double block and bleed options to suit a variety of applications. Engineered for low operating torque, the DMF utilises a super-finished stem and low-friction sealing system to ensure smooth operation and a reliable, leak-tight seal, even in high-temperature environments.
FEATURES
Compact monoflange design for space-efficient installation
Available in Block, Block & Bleed, and Double Block & Bleed configurations
Flange x screwed connection type
Connection sizes from ½” to 3”
Pressure ratings from ASME 150 to 2500
Temperature range: -46°C to 538°C (-51°F to 1000°F)
Bore sizes: 5mm and 8mm
Super-finished stem for reduced operating torque
Low-friction PTFE and graphite packing for leak-tight sealing
Non-rotating hard tip for reliable shut-off
4–7 turns from open to close
Top-sealing bonnet design
Optional anti-tamper head units
Full material traceability
Because standard products don’t always fit the application.
At Colson Valves, we design and manufacture bespoke valve solutions in-house, which means we can move quickly on late specification changes, tight timelines and complex operating conditions – without compromising quality or compliance.
